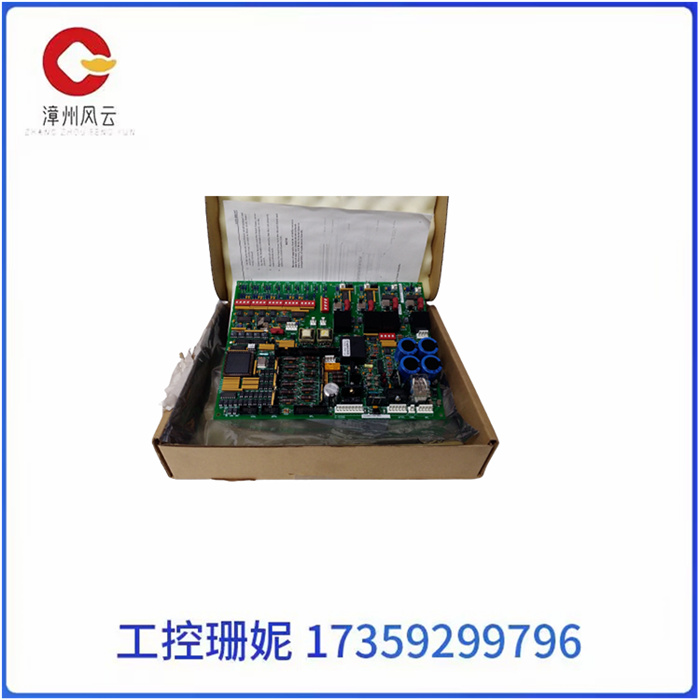

GE DS200TCPSG1A 电源直流输入板

GE DS200TCPSG1A 电源直流输入板

产品描述

GE 电源直流输入板DS200TCPSG1A包含三个保险丝、一个 16 针连接器和一个 9 针连接器。它还包含多个测试点。当您怀疑电路板已按预期停止工作或突然停止工作时，故障排除的第一步是检查三个保险丝。如果电路板中存在过多电流或电流不规则，保险丝会关闭电路板，从而防止损坏电路板。手头有相同额定值的保险丝，以防保险丝熔断。

它们的额定值必须完全相同，因为不同的保险丝可能会使电路板处于过流状态并导致损坏。三个保险丝保护电路板上的三个不同电路免受过多电力造成的损坏。

要安装更换保险丝，必须关闭驱动器的电源。执行更换的合格维修人员必须了解驱动器以及如何安全地断开驱动器的电源。在主板上工作之前，必须测试驱动器以验证驱动器中没有电源。根据电路板的安装方式和电路板的可访问性，可以在不拆卸电路板的情况下更换保险丝。但是，如果必须卸下电路板，请使用螺丝刀卸下将电路板固定在金属板架中的四个螺钉。在电路板的每个角落插入一个螺钉。

GE DS200TCPSG1A 电源直流输入板

Product description

The GE Power DC input board DS200TCPSG1A contains three fuses, a 16-pin connector, and a 9-pin connector. It also contains multiple test points. When you suspect that the board has stopped working as expected or suddenly stopped working, the first step in troubleshooting is to check the three fuses. If there is too much current in the board or if the current is irregular, the fuse will close the board, thus preventing damage to the board. Have fuses of the same rating on hand in case of a blown fuse.

Their ratings must be exactly the same, as different fuses can put the board in an overcurrent state and cause damage. Three fuses protect three different circuits on the board from damage caused by too much power.

To install a replacement fuse, the power to the drive must be turned off. A qualified service person performing a replacement must understand the drive and how to safely disconnect the power to the drive. Before working on the motherboard, the drive must be tested to verify that there is no power supply in the drive. Depending on how the board is mounted and how accessible the board is, the fuse can be replaced without removing the board. However, if the board must be removed, use a screwdriver to remove the four screws holding the board to the metal plate holder. Insert a screw at each corner of the board.

GE DS200TCPSG1A 电源直流输入板
