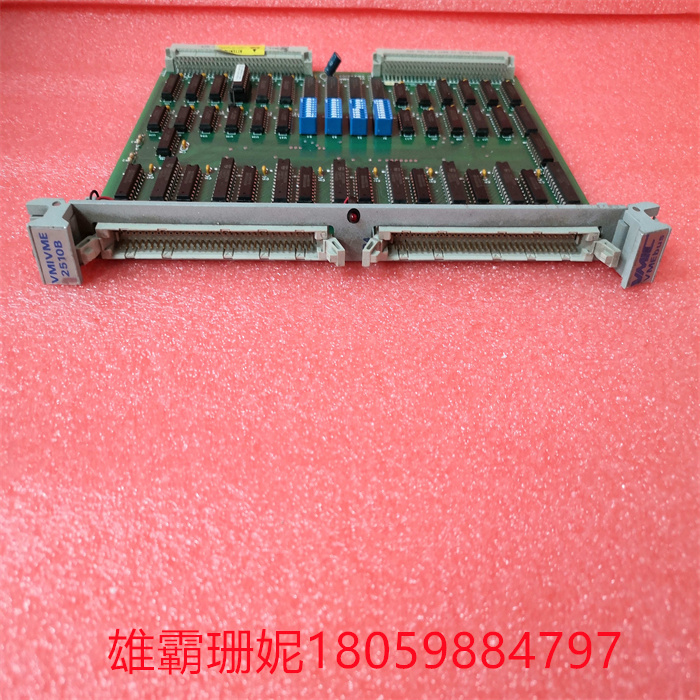

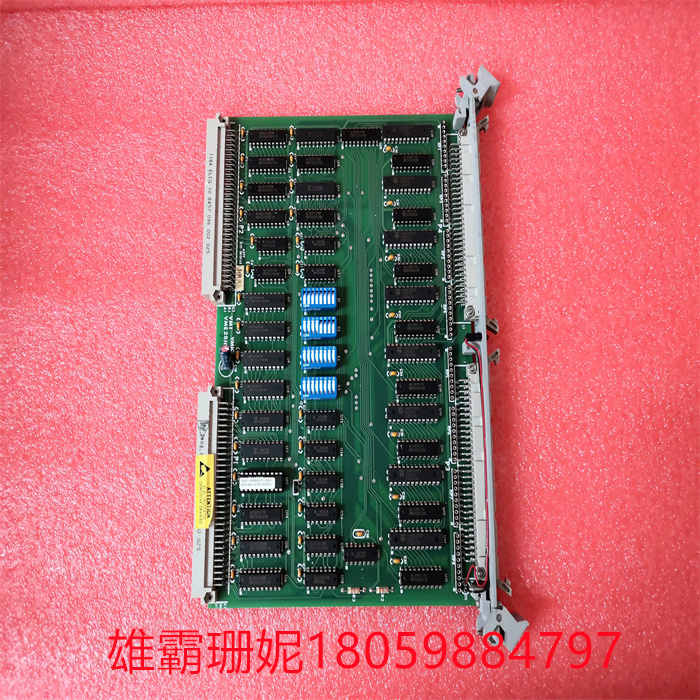

GE VMIVME-2510B 电源断路器

GE VMIVME-2510B 电源断路器

VMIVME-2510B是VMIC mega module系列的一员，该系列具有通用编程功能。子系统可以配置连续的I/O地址以节省内存。这些产品(VMIVME-1110、VMIVME-2120、VMIVME-2130和VMIVME-2510B)均设计有两组板地址开关，为CSR和I/O地址提供高效的存储器地址映射。

可以设置CSR地址开关，使得系统中各种板之间的所有CSR可以被映射到连续的存储器位置。

Megamodule产品还支持8位、16位和32位数据传输。VMIVME-2510B中设计了特定的硬件来支持内置测试功能。VMIVME-2510B支持离线和在线故障检测和隔离。前面板故障LED用于指示该板上何时存在故障。通电或复位时，LED会亮起。成功完成板级诊断后，LED会熄灭。

The VMIVME-2510B is a member of the VMIC mega module family with general-purpose programming capabilities. The subsystem can be configured with consecutive I/O addresses to save memory. These products (VMIVME-1110, VMIVME-2120, VMIVME-2130, and VMIVME-2510B) are designed with two sets of board address switches to provide efficient memory address mapping for CSR and I/O addresses.

The CSR address switch can be set so that all CSRS between the various boards in the system can be mapped to a continuous memory location.

Megamodule products also support 8-bit, 16-bit, and 32-bit data transfers. Specific hardware is designed in the VMIVME-2510B to support the built-in test functionality. The VMIVME-2510B supports offline and online fault detection and isolation. The front panel fault LED is used to indicate when there is a fault on the board. When powered on or reset, the LED lights up. After successful completion of board level diagnosis, the LED will go off.
