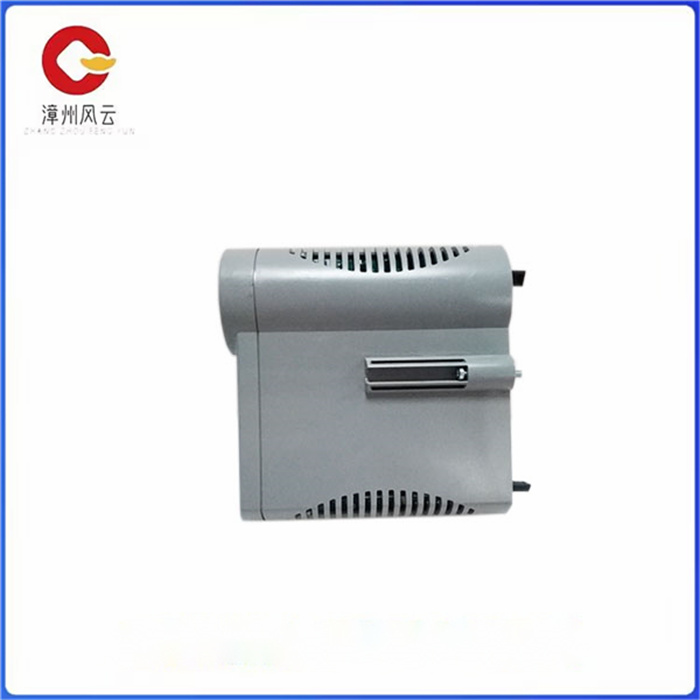

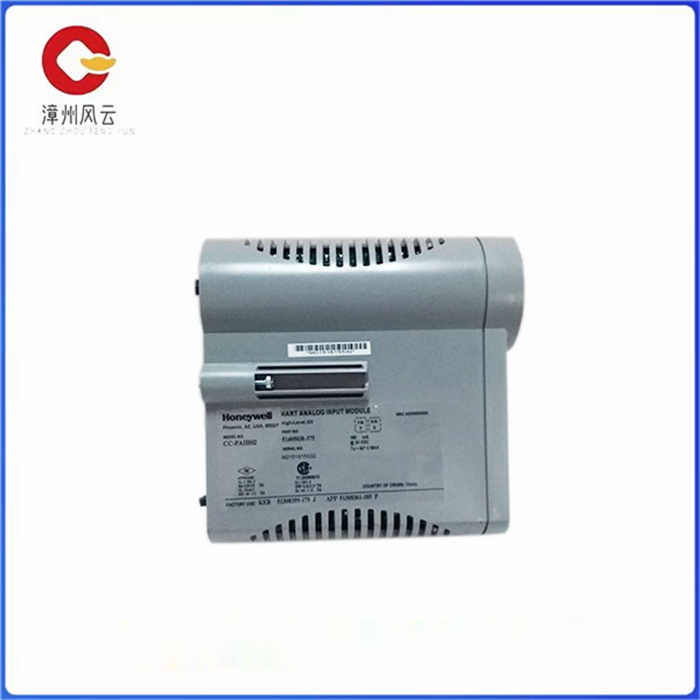

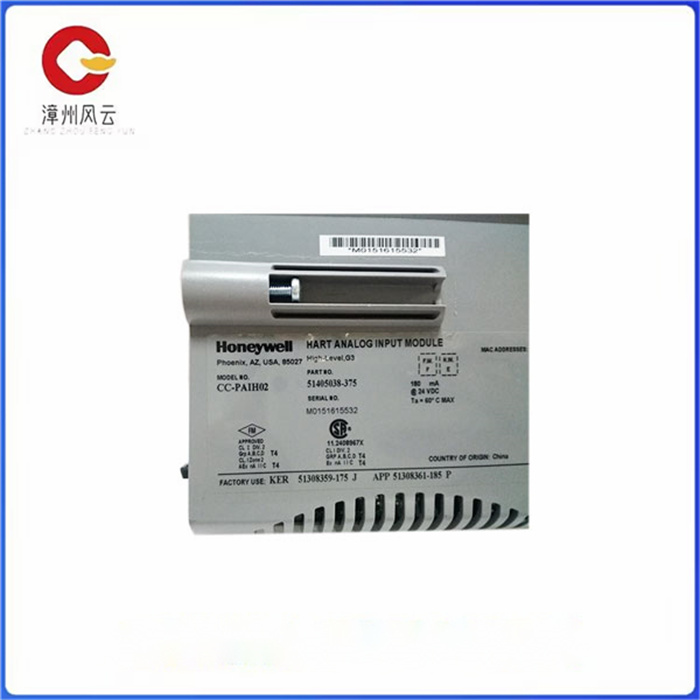

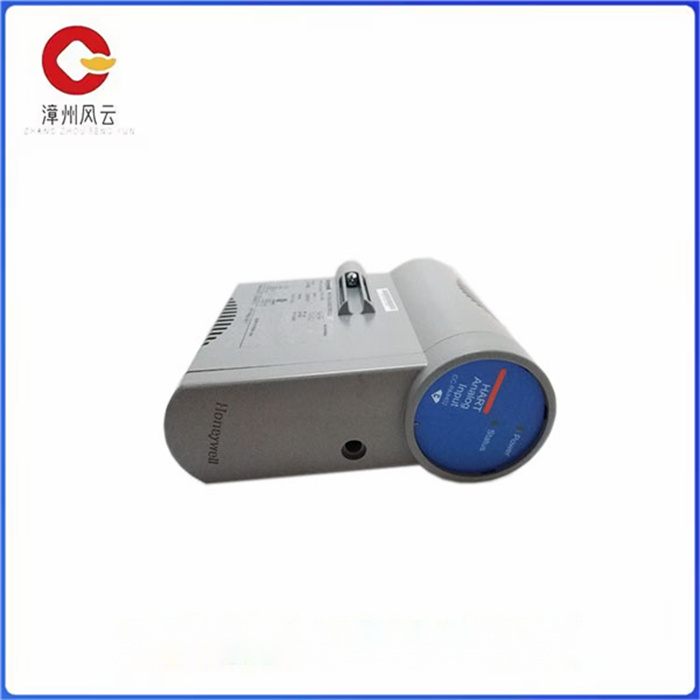

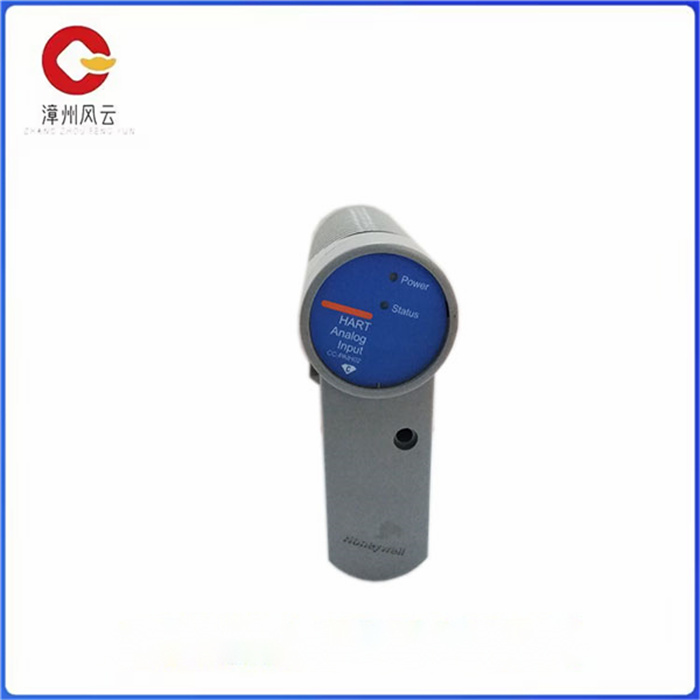

CC-PAIH02 HONEYWELL 通信功能的高级模拟输入模块

CC-PAIH02 HONEYWELL 通信功能的高级模拟输入模块

CC-PAIH02 有 16 个通道，其中 12 个单端通道，4 个差分通道。每个通道的输入范围为 0 至 5 V、1 至 5 V、0.4 至 2 V 或 4 至 20 mA。共模抑制比为70dB，常模抑制比为60dB。A/D 转换器的分辨率为 16 位。

CC-PAIH02 具有多种功能，使其成为工业自动化应用的宝贵工具。这些功能包括：

●HART 通信 – 这允许模块与支持 HART 的设备（例如变送器和传感器）进行通信。

●全面的自诊断：模块提供一系列自诊断功能，可用于故障排除。

●可选冗余：模块可配置冗余，提供更高的可靠性。

●断线检测：此功能有助于保护模块免受断线造成的损坏。

●非燃烧能源：该模块可由非燃烧能源供电，使其适合在危险区域使用。

CC-PAIH02 是一款多功能且可靠的模拟输入模块，可用于各种工业自动化应用。对于需要 HART 通信、自诊断、冗余或断线检测的应用来说，它是一个不错的选择。

以下是霍尼韦尔 CC-PAIH02 的一些应用：

●过程控制

●温度监控

●液位测量

●流量测量

●压力测量 振动

●监控

●资产

●跟踪 状态监控

●安全系统

CC-PAIH02 HONEYWELL 通信功能的高级模拟输入模块

CC-PAIH02 has 16 channels, including 12 single-ended channels and 4 differential channels. The input range for each channel is 0 to 5 V, 1 to 5 V, 0.4 to 2 V, or 4 to 20 mA. The common mode rejection ratio was 70dB and the normal mode rejection ratio was 60dB. The resolution of A/D converter is 16 bits.

CC-PAIH02 has a variety of functions, making it an invaluable tool for industrial automation applications. These features include:

HART communication - This allows the module to communicate with HART-enabled devices such as transmitters and sensors.

● Comprehensive self-diagnosis: The module offers a range of self-diagnostic functions that can be used for troubleshooting.

● Optional redundancy: Modules can be configured with redundancy to provide higher reliability.

● Broken line detection: This function helps protect the module from damage caused by broken lines.

Non-combustion energy: The module can be powered by non-combustion energy, making it suitable for use in hazardous areas.

CC-PAIH02 is a versatile and reliable analog input module that can be used in a variety of industrial automation applications. It is a good choice for applications that require HART communication, self-diagnostics, redundancy or break detection.

Here are some applications of the Honeywell CC-PAIH02:

● Process control

● Temperature monitoring

● Liquid Level measurement

● Flow measurement

● Pressure measurement vibration

● Monitoring

● Assets

● Tracking status monitoring

● Safety system
