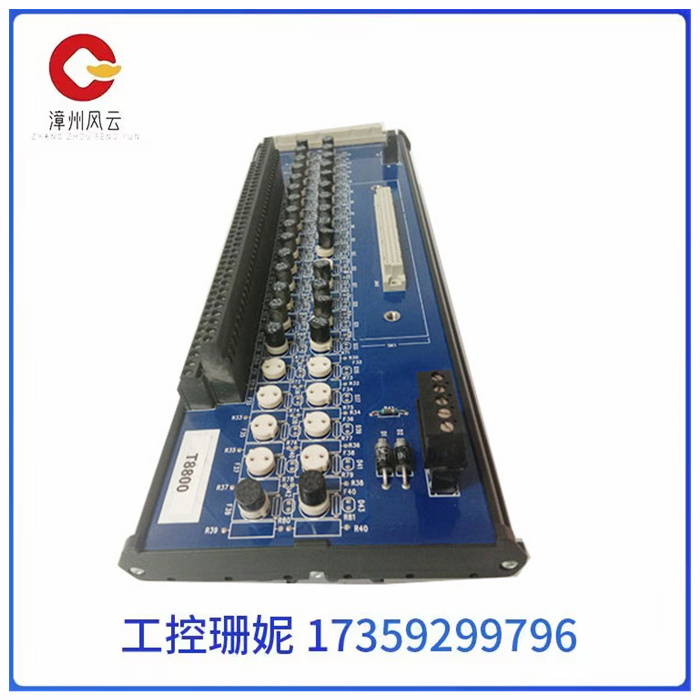

ICSTRIPLEX T8800 扩展模块 自动化机械

ICSTRIPLEX T8800 扩展模块 自动化机械

ICSTRIPLEX T8800 扩展模块 自动化机械

应用程序接口(API)为可信TMR处理器向应用程序提供的服务提供一致的运行时接口。API还对在可信TMR处理器内执行的系统特定软件执行相同的功能。

1.2.硬件实现的容错(HIFT)时钟每个处理器和前面板FCR区域都有自己的HIFT时钟，这些时钟由容错参考时钟提供同步参考信号。

1.3.配电每个处理器和FCR都从双冗余+24 Vdc电源获得内部电压，该电源通过可信控制器机箱背板的模块连接器提供。

1.4.故障/失效继电器每个处理器从位于前面板IRIG密封区的两个继电器产生一个故障和失效信号

ICSTRIPLEX T8800 扩展模块 自动化机械

The application program interface (API) provides a consistent runtime interface to the services that the trusted TMR processor provides to the application. The API also performs the same function for system-specific software that executes within a trusted TMR processor.

Each processor and the FCR area of the front panel has its own HIFT clock, which is synchronized by a fault-tolerant reference clock.

1.3. Power Distribution Each processor and FCR gets its internal voltage from a dual redundant +24 Vdc power supply that is provided through a module connector on the backplane of the trusted controller case.

1.4. Failure/Failure relays Each processor generates a fault and failure signal from two relays located in the IRIG seal area on the front panel
