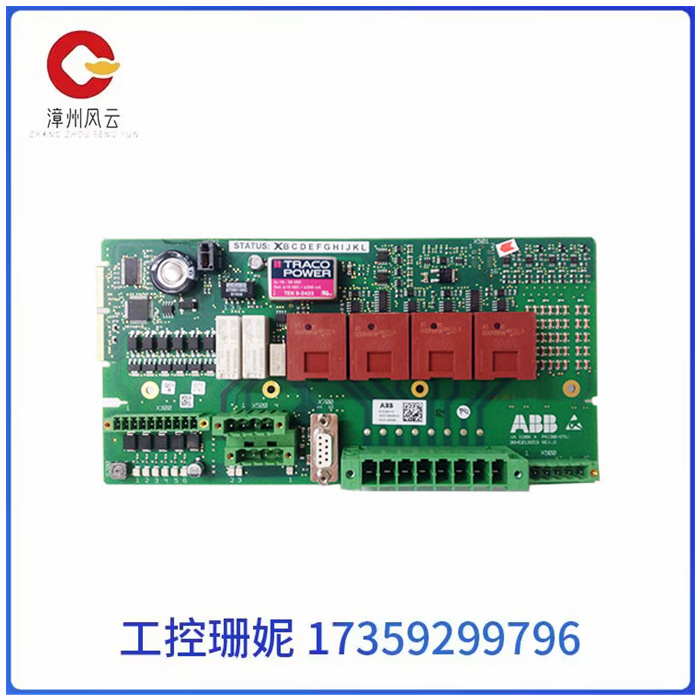

UAD206A101 3BHE019958R0101多功能工业卡件数字接口，由IMFEC11模块和控制模块，在INFI 90 OPEN操作员界面和Bailey Fischer&Porter智能变送器.

命令可以从操作员界面发送，以更换变送器参数或重新设定变送器输出范围。作为回报变送器向操作员发送过程和状态数据通过FEC模块和控制模块接口（MFP/MFC）。

控制模块与I/O扩展器总线上的FEC模块。FSK智能变送器以9600波特的速率与IMFEC11模块通信。为防止正常操作期间变送器配置发生变化，模块在每次变送器通信开始时向变送器发送一个安全字节。

安全字节触发智能变送器仅从模块接收配置命令，除非FEC模块使变送器离线。安全字节锁从其他操作员界面输出配置命令例如STT03型智能发射器终端。

全部的设备可以监视发射机。当发射器接收到安全字节，它设置一个两分钟的计时器。计时器倒计时，直到收到另一个命令重置计时器。通常计时器不会过期，因为模块在两分钟计时器到期之前重置它。

UAD206A101 3BHE019958R0101 ABB 模拟量输入模块

UAD206A101 3BHE019958R0101 Multifunctional industrial card digital interface, consisting of IMFEC11 module and control module, INFI 90 OPEN operator interface and Bailey Fischer&Porter intelligent transmitter.

Commands can be sent from the operator interface to change transmitter parameters or reset transmitter output ranges. In return the transmitter sends process and status data to the operator via the FEC module and the control module interface (MFP/MFC).

Control module with FEC module on I/O expander bus. The FSK intelligent transmitter communicates with the IMFEC11 module at a rate of 9600 baud. To prevent changes in transmitter configuration during normal operation, the module sends a secure byte to the transmitter at the beginning of each transmitter communication.

The safe byte triggers smart transmitter to receive configuration commands only from the module, unless the FEC module takes the transmitter offline. Security Byteclock outputs configuration commands from other operator interfaces such as the STT03 smart transmitter terminal.

All the equipment can monitor the transmitter. When the transmitter receives a secure byte, it sets a timer for two minutes. The timer counts down until another command is received to reset the timer. Usually the timer does not expire because the module resets the two-minute timer before it expires.
