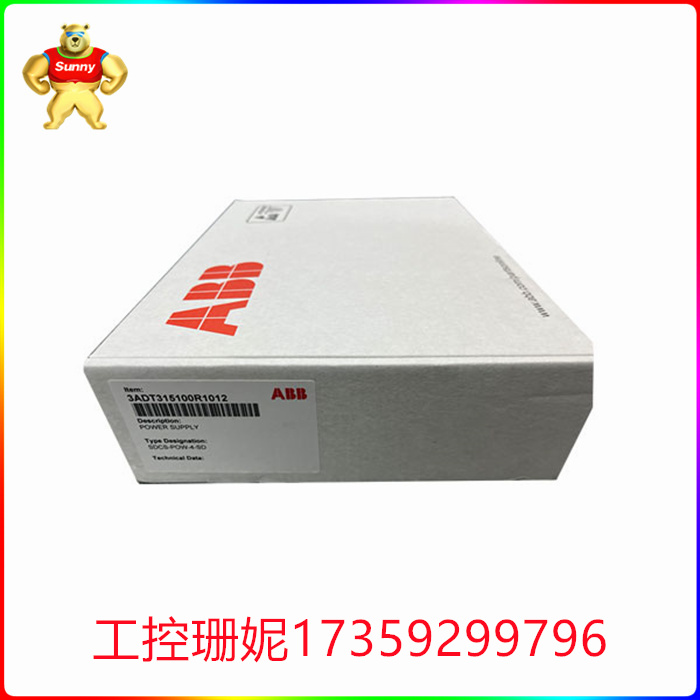

ABB SDCS-POW-4-SD 控制板

ABB SDCS-POW-4-SD 控制板

ABB SDCS-POW-4-SD手动设置装置参数并优化成功后，可以通过Drive Monitor软件连接PC和直流调速装置，打开软件所有参数将件中显示，然后即可在线进行参数查看、设置、调整。

也可将参数下载保存到PC中备份，以后换了新的直流调速装置可直接上传参数，不必再手动——设置。

ABB SDCS-POW-4-SD转矩控制直接在定子坐标系下分析交流电动机的数学模型，控制电动机的磁链和转矩。

它不需要将交流电动机等效为直流电动机，因而省去了矢量旋转变换中的许多复杂计算;它不需要模仿直流电动机的控制，也不需要为解耦而简化交流电动机的数学模型。

ABB SDSC-POW-4-SD After the device parameters are manually set and optimized, you can connect the PC and the DC speed control device through the Drive Monitor software, open all parameters of the software to display, and then you can view, set, and adjust parameters online.

You can also download and save the parameters to the PC backup, after the new DC speed control device can directly upload the parameters, no need to manually set.

ABB SDSC-POW-4-SD Torque control analyzes the mathematical model of the AC motor directly in the stator coordinate system and controls the flux and torque of the motor.

It does not need to equate the AC motor to the DC motor, thus eliminating many complicated calculations in vector rotation transformation. It does not need to mimic the control of a DC motor, nor does it need to simplify the mathematical model of an AC motor for decoupling.
