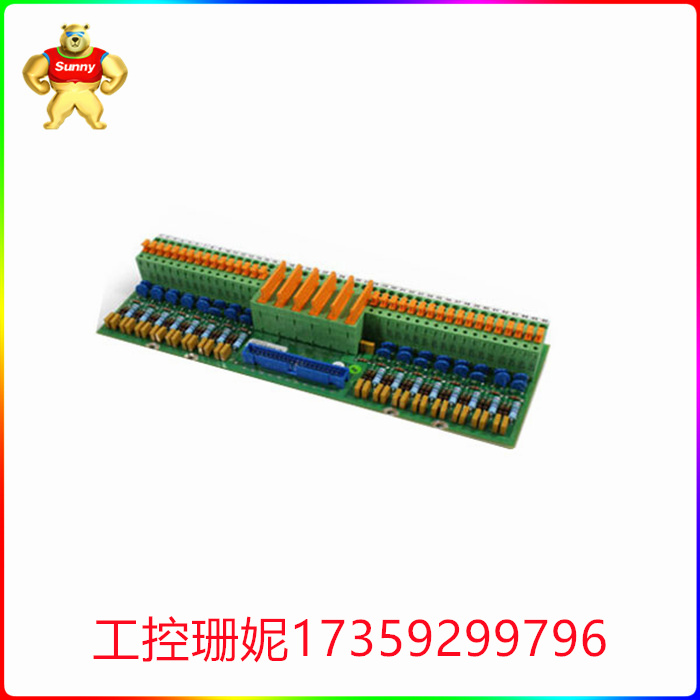

DSTA131模拟板连接单元57120001-CV通讯网关

DSTA131模拟板连接单元57120001-CV通讯网关

CPU底板

1、底板可安装和插接全系列的CPU模块

2、1至4个不等的空槽可供插接不同的通讯模块本地I/0扩展，最多可以连接10个1/0模块底板

3、集成了一个可用于从站通讯的FBP接口

4、集成COM1口(可插拔的接线端子)和集成COM2口(SUB-D插头)

CPU backboard

1, the bottom plate can be installed and plugged into a full series of CPU modules

2. 1 to 4 slots can be used to connect the local I/0 expansion of different communication modules, and up to 10 1/0 module baseboards can be connected

3, integrated an FBP interface that can be used for slave station communication

4, integrated COM1 port (pluggable terminal) and integrated COM2 port (SUB-D plug)
